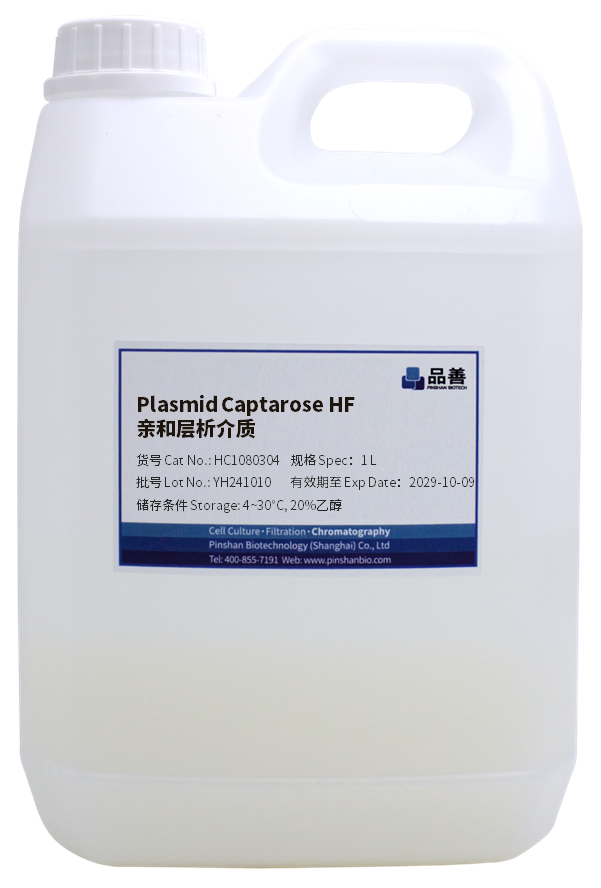

Plasmid Captarose Resin
Product Introduction

Plasmid Captarose HF/Plasmid Captarose HR is a thiophilic affinity chromatography resin prepared by coupling 2-mercaptopyridine ligands to a highly rigid agarose matrix. The separation principle of thiophilic affinity chromatography utilizes interactions between electron donors and acceptors to purify biomolecules, with these interactions being enhanced under high-salt conditions and diminished under low-salt conditions. Plasmid Captarose HF/Plasmid Captarose HR is primarily used for the purification of supercoiled plasmid DNA. During the purification process, supercoiled plasmid DNA binds to the resin while open circular plasmid DNA does not interact with the resin, achieving separation. The high-quality supercoiled plasmid DNA obtained after purification is commonly used in gene therapy or as DNA vaccines.

Product Highlights
Excellent Stability, Good Reproducibility
Strong Hydrophilicity, Minimal Non-specific Adsorption
High Resolution, High Rigidity, Low Backpressure, High Binding Capacity
Technical Parameters
Product Name Plasmid Captarose HF Plasmid Captarose HR
Matrix Highly Rigid Agarose
Average Particle Size 75 µm 40 µm
Ligand 2-Mercaptopyridine
Binding Capacity >2 mg Supercoiled Plasmid DNA/mL Resin ~3 mg Supercoiled Plasmid DNA/mL Resin
Recommended Flow Rate <600 cm/h <300 cm/h
Recommended Pressure <0.5 MPa (5 bar)
pH Stability 3-11 (Long-term*); 2-13 (Short-term*)
Chemical Compatibility Stable in common aqueous buffers including 70% Ethanol, 0.1 M NaOH, 1 M Acetic Acid
Storage Conditions 20% Ethanol; 4-30℃

Note *: Long-term refers to resin stability without performance degradation. Short-term refers to pH ranges experienced during regeneration, CIP, and sanitization.

Ordering Information
Product Name Catalog No. Specification
Plasmid Captarose HF HC1080301 25 mL
HC1080302 100 mL
HC1080304 1 L
HC1080305 5 L
Plasmid Captarose HR HC1080201 25 mL
HC1080202 100 mL
HC1080204 1 L
HC1080205 5 L
